GODEX RT200i
Printmethode
Thermal Transfer / Direct Thermal
Resolutie
203 dpi (8 dots/mm)
Snelheid
Tot 177 mm/s
Printbreedte
54mm
Printlengte
Min. 4 mm; Max. 1727 mm
Geheugen
8MB Flash (4MB for user storage) / 16MB SDRAM
Sensor
Vaste transmissieve sensor and reflective sensor, central aligned
Adjustable reflective sensor (full range)
Media
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: Min. 0.79” (20 mm) – Max. 4.64” (118 mm)
Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.2 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1”, 1.5” (25,4 mm, 38,1 mm)
Ribbon
Types: Wax, wax/resin, resin
Length: 981’ (300 m)
Width: 1.18” (30 mm) Min. - 4.33” (110 mm) Max.
Ribbon roll diameter.: 2.67“ (68 mm)
Core diameter: 1” (25.4 mm)
Printer Language
EZPL, GEPL, GZPL auto switch
Software
Label design software: GoLabel (for EZPL only)
Driver: Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008
DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android

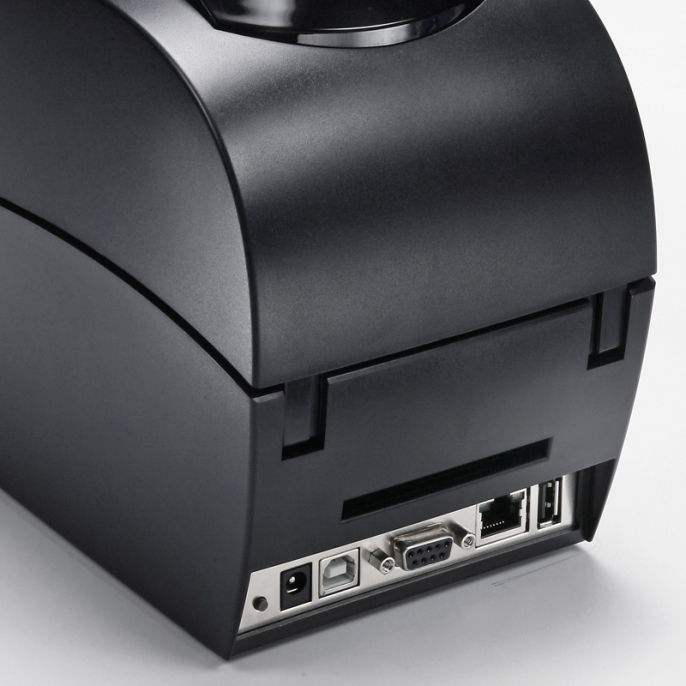

Interfaces
USB 2.0
Serial port: RS-232 (DB-9)
Ethernet 10/100 Mbps

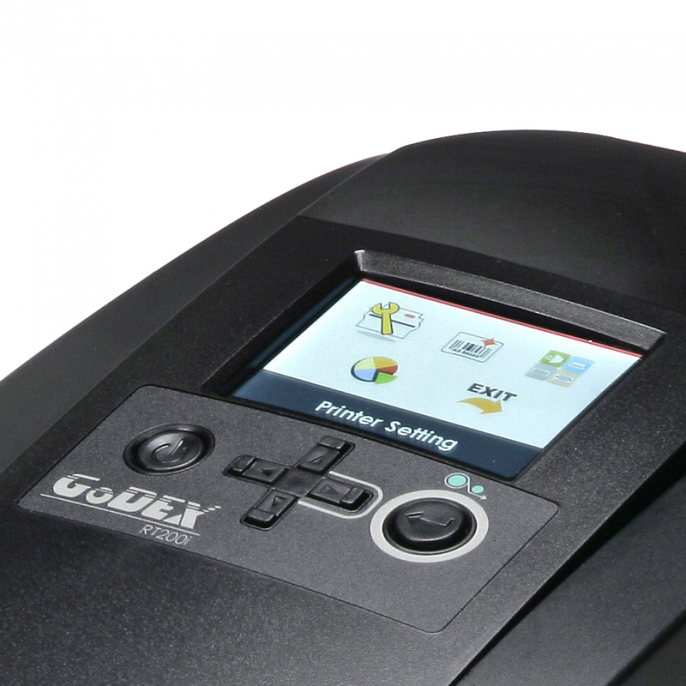

Control Panel
Color TFT LCD with navigation button
Power on/off button
Calibration button
Real Time Clock
Standard
Environment
Operation temperature: 5°C to 40°C
Storage temperature: -20°C to 50°C
Humidity
Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.
Dimension
Length: 245 mm
Height: 175 mm
Width: 136 mm
Weight
2.0 Kg
Options
Guillotine Cutter
Label Dispenser
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder
